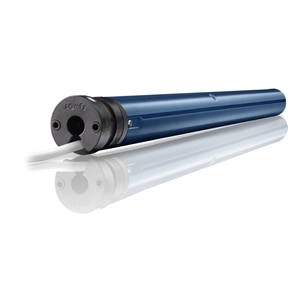

SONESSE 40 RTS 6/20 VVF3M UNIT - 1001577 - 1 - Somfy
SONESSE 40 RTS 6/20 VVF3M UNIT - 1001577 - 1 - Somfy

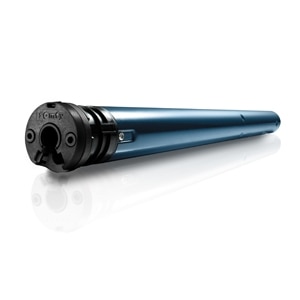

SONESSE 40 RTS 6/20 VVF3M UNIT - 1001577 - 2 - Somfy

Ref : 1001577 - SONESSE 40 RTS 6/20 VVF3M UNIT

SONESSE 40 RTS 6/20 VVF3M UNIT
Price not available

SONESSE 40 RTS 6/20 VVF3M UNIT

More about
Application
Interior blinds
Technology Warranty
RTS 5 Years

Product benefits

Benefits for professionals

Easy integration

- Suitable for tubes diameter 37 mm or more (internal diameter)
- Same integration process as LS 40 & Altus 40
- Integrated antenna
- Black and thin round head for discreet blending

Setting from a distance

- Up and down end limits set by remote control
- Visual feedback of the product to confirm any step of setting and programming

Details and specifications

The new acoustic standard for interior window covering market

- Designed for silence
- Remote limit setting
- Compatible with Solar protection functions
- Compatible with Modulis functions
- "My" favorite, move in one click to your favorite position
- Thin head, back and thin round head for discreet blending

Documents

Others

Technical information

End product
End product type Roller blinds, Roman blinds, Pleated and cellular blinds, Venetian blinds, Projection screens, Zebra blinds

Technology
Radio Frequency RTS 433,42   MHz

Electrical
Antenna Integrated
Consumption during operation 120   W
Minimum voltage 207   V
Maximum Voltage 253   V
Rated current 0.55   A
Nominal Voltage / Frequency 230V - 50Hz

Mechanical
Capacity of the limit switch unit 250   turns
Type of limit switch unit Electronic
Type of head Round head
Nominal Speed 20   rpm
Nominal Torque 6   Nm
Repeatabilty ± 4   °

Standard
Protection Index IP 44
Insulation class II

Cable
Plug in cable Not removable
Cable type VVF
Wire section 0.75   mm²
Color White
Wire Lenght 3   m
Number of wires of the cable 2

Dimension
Riveting position distance 511   mm
Weight 1.25   Kg
Diameter 40   mm
Overall length 535   mm
Length 548   mm

Other
Thermal time 5   mn
Noise level (according to Somfy measures) 45   dBA
Working temperature 0 / +60   °C
