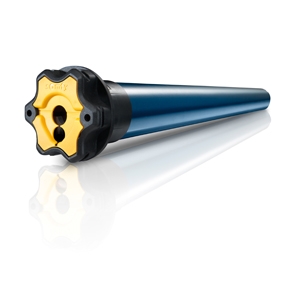

SONESSE 50 RTS 10/28 VVF3M UNIT
Ref : 1001786 - SONESSE 50 RTS 10/28 VVF3M UNIT
SONESSE 50 RTS 10/28 VVF3M UNIT
| Application | ||
|---|---|---|
| Interior blinds | ||
| Technology | ||
| RTS | ||
Product benefits
Benefits for professionals
Easy integration
- Suitable for tubes diameter 47 mm or more (internal diameter)
- Same integration process as LT 50 & Altus 50
- Removable cable
- Integrated antenna
Setting from a distance
- up and down end limits set by remote control
- Visual feedback of the product to confirm any step of setting and programming
Benefits for end users
Simple, effortless and comfort
- Quiet operation
- Move your shades effortless and remotely thanks to the radio control
- Move in one click your blind to your favorite "my" position
Access to RTS product rangefor more benefits
- Solar protection function compatibility
Details and specifications
The new acoustic standard for Interior window Covering market.
- Designed for silence
- Remote limit setting
- Compatible with Solar protection functions
- Compatible with Modulis functions
- "My" favorite, move in one click to your favorite position
- Round head for reduced dimemsions
- Star head
Technical information
End product |
|
|---|---|
| End product type | Roller blinds, Roman blinds, Pleated and cellular blinds, Venetian blinds, Projection screens, Zebra blinds |
Technology |
|
|---|---|
| Radio Frequency | RTS 433,42 MHz |
Electrical |
|
|---|---|
| Minimum voltage | 207 V |
| Consumption during operation | 180 W |
| Maximum Voltage | 253 V |
| Nominal Voltage / Frequency | 230V - 50Hz |
| Antenna | Integrated |
| Rated current | 0.8 A |
Mechanical |
|
|---|---|
| Nominal Torque | 10 Nm |
| Nominal Speed | 28 rpm |
| Type of head | Star head |
| Type of limit switch unit | Electronic |
| Capacity of the limit switch unit | 250 turns |
| Repeatabilty | ± 5 ° |
Standard |
|
|---|---|
| Protection Index | IP 44 |
| Insulation class | I |
Cable |
|
|---|---|
| Wire Lenght | 3 m |
| Number of wires of the cable | 3 |
| Wire section | AWG 18 mm² |
| Plug in cable | Removable |
| Cable type | AWG 18 |
| Color | White |
Dimension |
|
|---|---|
| Diameter | 50 mm |
| Weight | 3.14 Kg |
| Basic crown for tube diameter | 50 x 1,5 mm |
| Length | 666 mm |
| Riveting position distance | 640 mm |
| Overall length | 653 mm |
Other |
|
|---|---|
| Noise level (according to Somfy measures) | 45 dBA |
| Working temperature | -20 / +60 °C |
| Thermal time | 4 mn |
