LT CERES 8/12 WHITE CABLE 2.5M - 1035021 - 1 - Somfy

Ref : 1035021 - LT CERES 8/12 VVF 2,5M - UNIT

LT CERES 8/12 WHITE CABLE 2.5M
Price not available
More about
Application
Patio awnings
Technology
WT

Product benefits

For internal Blinds

Benefits for professionals

Easy integration

- Removable cable

Easy installation

- Available in star head (6 possibilities to orientate the motor head) and round head (for reduced dimensions)

Easy setting

- Down and up end limits set thanks to the progressive adjusting knob on the motor head


Benefits for end users

Simple, effortless and comfort

- Move your shades effortlessly

For external blinds

Benefits for professionals

- Rapid down and up end limits set by pressing the adjustment buttons on the head
- Adapted to all types of shutters
- Removable cable



Benefits for end users

- The most installed motor in the world
- Affordable motorization for your rolling shutters
- For LT CSI, an emergency command to move your shutters manually in case of power failure.

Details and specifications

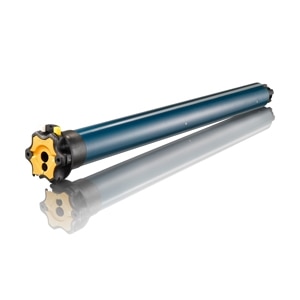

The proofed diameter 50 mm motor for blinds and screens

- Rapid adjustement buttons
- Progressive limit setting thanks to the progressive adjusting knob on the motor head
- Star head
- Round head for reduced dimensions

Documents

Others

Technical information

End product
End product type Roller blinds, Roman blinds, Projection screen, Zebra blinds

Electrical
Consumption during operation 90   W
Minimum voltage 207   V
Maximum Voltage 244   V
Nominal Voltage / Frequency 230V - 50Hz

Mechanical
Capacity of the limit switch unit 46   turns
Type of limit switch unit Quick limit switch
Type of head Star head
Nominal Speed 12   rpm
Nominal Torque 8   Nm
Repeatabilty ± 5   °

Standard
Protection Index IP 44
Insulation class I

Cable
Cable type VVF
Wire section 0.75   mm²
Color White
Wire Lenght 2.5   m
Number of wires of the cable 4

Dimension
Riveting position distance 490   mm
Weight 1.72   Kg
Overall length 505   mm
Basic crown for tube diameter 50 x 1,5   mm
Length 513   mm

Other
Thermal time 4   mn
Noise level (according to Somfy measures) 46   dBA
Working temperature -10 / +40   °C
