UNIVERSAL RECEIVER RTS - 1810624 - 1 - Somfy

Ref : 1810624 - UNIVERSAL RECEIVER RTS

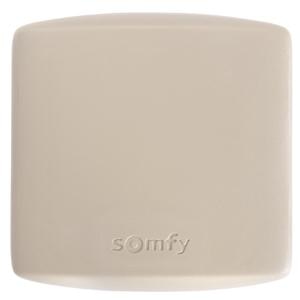

UNIVERSAL RECEIVER RTS
Price not available

UNIVERSAL RECEIVER RTS

Application
External screens,Patio awnings
Technology
RTS

Details and specifications

  • Outdoor radio receiver for connection to a standard
    motor allowing use via an RTS transmitter and RTS
    sensor. Compatible only with standard 230V motors.
  • Frequency: 433.42MHz.
  • IP55.
  • Supplied with wall mount and screws.
  • Dimensions: 110 x 110 x 40mm.

Documents

Others

Technical information

Technology
Range in open field 200
Radio Frequency 433,42   MHz
Range in house 20
Capacity of memory 12
Bus type RTS

Electrical
Output type of contact 250V 3,15A
Minimum voltage 205   V
Maximum Voltage 255   V
Nominal Voltage / Frequency 230V 50/60Hz

Standard
Approval RCM
Insulation class II
Protection Index IP 55

Dimension
Weight 0,210   Kg
Height 110   mm
Width 110   mm
Depth 40   mm

Other
Working temperature - 20 to + 60   °C
Color / Finish Bronzal ultra light
